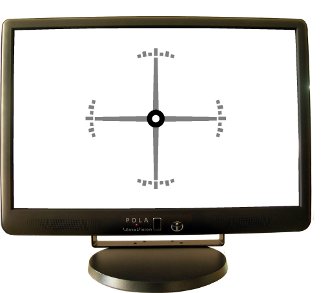

Pola
VistaVision
22", Anti-glare, Positive polarization,
LCD Chart system: a unique solution for both
monocular and binocular tests
 |
-
100% separation and equal
background !
-
Image separation created
through the most improved
Polarization technique
eliminates ghost images
-
Without any additional
items, POLA VistaVision
allows the generation of
optotypes with positive
polarization
-
LCD 22-inch wide screen
(1680x1050), Anti-Glare,
calibrated constant
certified luminance
-
Wall mounting and Portable.
Completely silent (fan-less)
-
Computer integrated; Fast
built-on and instant-off
(Embedded Linux Operating
System)
-
Dynamic tests based on
parameters and distance
-
All letters chart with
random and contrast
sensitivity function
-
Complete, precise and
versatile software for a
fast acuity evaluation;
programmable patient’s
vision examination
-
Free internet upgrade
software via USB Key
-
Long-life, up to date
technology
|
|
|
Polarized Charts
In addition to the charts
implemented on VistaVision,
POLA VistaVision includes several
dynamic polarized tests, based on
parameters and distance.
Binocular tests are shown with positive
polarization through a special LCD
screen: a unique solution for both
monocular and binocular vision tests.
Polarization is linear 45° / 135°.
Polarized charts can be used with the
polarized glasses included or with the
phoropter's polarized lenses, as you
prefer.
Polarized charts are in compliance with
the "Guidelines for the Correction of
Associated Heterophia", if applicable
(see "MKH Measuring and Correcting
Methodology after H.-J. Hasse" or visit IVBV Internationale
Vereinigung für Binokulare
Vallkorrektion).
|
|
|
|
Specifications
-
LCD for both monocular
and binocular vision
tests
-
LCD 22-inch, 1680x1050
pixel, 230 cd/m2,
contrast 1000:1
Calibrated luminance for
a precise Contrast
Sensitivity measurement
-
Polarization 45° / 135°
-
Wide V.A. Range of
Examination: 0.03 - 2.0
-
Customizable working
distance: up to 8 m (26
ft), step 5 cm (0.25 ft)
-
Two preselected
background luminance
levels: normal or dark
room
-
Visual units: 17 visual
acuity notations
(decimal, 20 ft, 6 m,
/10, log, LogMar, Mar,
10 ft, 3 m, …)
-
Smart: just 3 remote
control keys to run
all
tests
Programmable test
sequences
MKH test sequence
according to Haase, over
20 pola tests
Maddox Rod Test
Contrast Sensitivity
Test with 144 calibrated
stimuli, 3 random
inclinations, 8 contrast
sensitivity levels, 6
spatial frequency levels
(from 0.75 to 18
cycle/degree), graph
report. 'Sequential'
procedure and
psycho-physic 'FAST 2-1'
procedure are available
for CST.
Masking: Single letter,
Horizontal line,
Vertical line
Unlimited number of
charts, full optotype
randomization
Video player with child’s
entertainment and
stereo audio
Slideshow and movie
player for personal
pictures and movies
Eye pictures: anatomy,
pathology and therapy
illustrations
Video tutorial movies
Stylish Design, Silent
Dimension (W x H x D):
52.5 x 36.5 x 6.5 [cm],
Weight: 7 Kg
Power supply: 110-220
VAC, 50-60 Hz. Power
consumption: 60VA.
Customizable auto power
off.
IR remote battery type:
AAA (2x)
Standard wall mounting
Vesa 100 x 100 or table
version
Classification: CE,
Medical Device Class 1.
FDA approved
Compliance with:
international standard
UNI EN ISO 15004, ISO
10938, ISO 8596
Connectivity
POLA VistaVision can be
controlled by infrared remote
control or wireless
7" tablet touch. The
basic input device for POLA
VistaVision is the remote
control (RC). The infrared RC is
always supplied together the LCD
chart system.
Remote Panel is the professional
way to interact to your chart
panel. By using this 7" tablet
touch you can perform eye
examination without look
directly to the chart panel. It
also includes a free 'Near
Vision Tester' software
screening.
Connectivity to Digital
Refractor can
be obtained by using BlueKit:
our Wireless Connection Kit to
Phoropter.
 |
Infrared Remote Control:
- ad-hoc designed and dedicated remote control
- full functionality of POLA VV
- dynamic behavio
|
|
| |
|
 |
Remote Panel & Near Vision Tester (optional):
- high technology, user-friendly, touchscreen interface and wireless
- easy operation and full functionality
- you can perform eye examination without look directly to the chart panel
- this networking technology allows you to use multiple chart panels in the same examination room
- 2 products in 1: Near Vision Tester integrated (free add-on)
|
| |
|
 |
Wireless Connection Kit to Phoropter (optional):
- compatible with Huvitz HDR-7000, Huvitz CDR-3100, Indo eDR-10, Potec PAV-6100 and Unicos UDR-700
- wireless
- easy to install (converter box not provided)
|
|
|
|
|
|
