PRK-6000 |
|
Auto
Ref-Keratometer
验光/角膜曲率儀
|
|
Auto Ref-Keratometer
with
High Resolution Touch Screen |
验光/角膜曲率儀
備高解像輕觸式液晶屏 |
 |
|
Refraction &
Keratometry Measurement
|
验光度数/角膜曲率 |
| The
PRK-6000 provides and extensive dioptric
measurement range (-25D to +22D), and
the radius of curvature for keratometry
is 5.0mm to 10.2mm. Easy alignment and
friendly operation allows you to measure
the refraction and keratometry in
sequence, and the results can be
validated immediately. Due to its easy
alignment and friendly operation you can
measure the refraction and keratometry
in a sequence and the results can be
checked all at once.
|
Peripheral Karatometry
檢測角膜曲率
Peripheral corneal curvatures
can be measured by having the
examinee look at the peripheral
eye fixation lamps. Measuring
the corneal periphery will help
you examine irregular
astigmatism, and also determine
a better fitting for a contact
lens.
 |
Introduction
of various measurement systems of the
PRK-6000 enables location of even minor
eye disorders.
|
Intuitive Diameter Measurement
試量角膜及瞳徑
Using the freeze function,
measurement of the diameter of
the cornea, pupil or hard
contact lenses worn by the
patient can be per-formed. By
simply touching and dragging the
screen with your finger
measurements are exactly
calculated.
 |
|
TFT-LCD
with Touch Screen 輕觸式液晶屏幕
By adopting high resolution VGA
TFT-LCD with Touch Screen
function, we virtually removed
all input keys except the
measurement button on the
Joystick and Chinrest control
switches. Tests are preformed
rapidly and conveniently by
simply pressing a button or the
icon indicated on the screen.
 |
|
Instant
Display Data 清晰顯示詳細紀錄
By simply touching the icon on
the screen results of up to 10
measurements stored in memory
can be viewed or printed by the
built in thermal auto cut-off
printer.
 |
|
Interactive SETUP Change
個性化設置
Simply touch the icon on the
screen and changed setting can
be seen. The touch screen
supports the interactive
settings changes quickly and
conveniently saving user time
innovatively.
|
IOL
Measurement 白內障下檢測
When
refraction results in an error reading
due to an intraocular lens or cataract
the measurement can be performed with
the IOL icon switched 'ON'
|
Motorized Chinrest 電動升降下頜架
The
chinrest is motorized with the
use of a switch conveniently
positioned for the operator.
This makes for simple adjustment
of the chinrest from patient to
patient. |
 |
Printer with
Auto Cutter Function 打印後自動切紙
Simply touch
the "PRINT" icon on the screen and the
PRK-6000 will immediately provide a
complete printout of the measurement
results. An Auto Cutter is provided for
convenience.
Data
Transfer 資料傳輸
Data can be
transferred to external devices
(personal computer, etc.) via an RS-232
interface. A USB interface is also
provided for future compatibility.
|
Specifications
Measurement Modes 檢測模式
|
K/R Mode |
Continuous Keratometry and Refractometry |
|
REF Mode |
Refractometry |
|
KER Mode |
Keratometry |
|
CLBC |
Contact Lens Base Curve Measurement |
|
K (P) |
Peripheral Keratometry |
Refractometry
驗光
|
Vertex Distance (VD) |
0.0, 12.0, 13.5, 15.0 |
|
Sphere (SPH) |
-25.00 ~ +22.00D (when VD=12mm)
(Increments : 0.12 and 0.25D) |
|
Cylinder (CYL) |
0.00 ~ +/- 10.00D
(Increments : 0.12 and 0.25D) |
|
Axis (AX) |
1 ~ 180° (increments : 1°) |
|
Cylinder Form |
-, +, MIX |
|
Pupil Distance (PD) |
10 ~ 85 mm |
|
Minimum Pupil Distance |
Ø 2.0mm |
Keratometry
角膜曲率
|
Radius of Curvature |
5.0 ~ 10.2mm (Increments : 0.01mm) |
|
Corneal Power |
33.00 ~ 67.50D
(when cornea equivalent refractive index
is 1.3375)
(Increments : 0.05/0.12/0.25D) |
|
Corneal Astigmatism |
0.00 ~ -15.00D (Increments :
0.05/0.12/0.25D) |
|
Axis |
1 ~ 180° (Increments : 1°) |
Others 其他
|
Corneal Diameter |
2.0 ~ 12.0mm (Increments : 0.1mm) |
|
Memory of Data |
10 measurements for each eye |
|
Internal Printer |
Thermal line printer with Auto-Cutter
function |
|
Monitor |
16.25 cm(6.4 inch) TFT-LCD
(640 x 480 pixels, Touch-Screen
function) |
|
Power Supply |
AC100-240V, 50/60Hz (Free Voltage, Free
Frequency) |
|
Dimensions |
Approx. 300 (W) x 500 (D) x 430 (H) mm |
|
Weight |
Approx 20kg |
|
Powerful
cross cylinder lens The dual cross
cylinder lens makes fast & convenient
examinations.
· Automatic occluding function prevents
examinee's eye from accommodation, while the
lens is rotating over 45 degree, for precise and
comfortable examination.
Vertex
distance check and cornea illumination |
|
| Accurate tests are
guaranteed by positioning the examinee's
eyes correctly before tests. |
  |
|
|
Easy
and flexible PD control From any
mode, you can adjust the PD easily and
conveniently. When the test mode is
changing between far and near, the PD is
automatically calculated and set. |
 |
|
|
Support perfect convergence During the
presbyopia and near vision test,
PAV-6100 provides perfect convergence
function. This function makes the
examinee's eyes aligned with the center
of lenses for precise measurements.
· Near PD : 45 ~ 75mm
· Near working distance :
35 ~ 70mm |
 |
|
|
Accurate rotary prism
Precise data can be
obtained by measuring up to 20Δ by 0.1Δ
step. Automatic occluding function
option helps to perform precise and
comfortable examinations while the
prisms are changing directions. |
|
|
Adjustable LCD display Operator
always can see the clear screen by
adjusting the LCD from 0 to 90 degree. |
 |
|
|
Quick and convenient function-key
Provides short-cuts over 200 different
options and advanced functions according
to the test modes and various
situations. Combination with SHIFT or
ALT, buttons on the control panel
provide one-touch operating environment.
· Various & well-organized
short-cuts. |
|
|
Data
preset function Enables to
set up the lenses at once in any modes
when the user presets examinee's data. |
 |
|
|
Interactive menu system Easy operating
environment adopting interactive
system. |
 |
 |
|
|
Simple and easy buttons The buttons play
multiple functions according to tests
and menu modes. Selection, Changing and
execution of menus or tests are more
faster in this environment. |
|
|
Convenient ESC function The ESC Key
provides convenient function to return
back to main examination mode canceling
a menu mode or a test mode executed
before. |
 |
|
Improved Functionality
 Help
mode & real-time guide
· Real time guide & HELP function
guide you to make easy &
fast refraction showing the
· information you need on the LCD
display by graphics. |
 |
|
Displaying
the result data in tables and graphics
· Well-organized result data in
tables and graphics help you
to understand the results at
· first glance. |
 |
|
Operation
panel with a built-in high-speed printer
Easy and fast to combine with any
kinds of refraction units without
installing additional
printer. The powerful 32-bit CPU
loaded printer provides quick data
printing. You will
also be satisfied with the easy way
to replace printing paper. |
 |
|

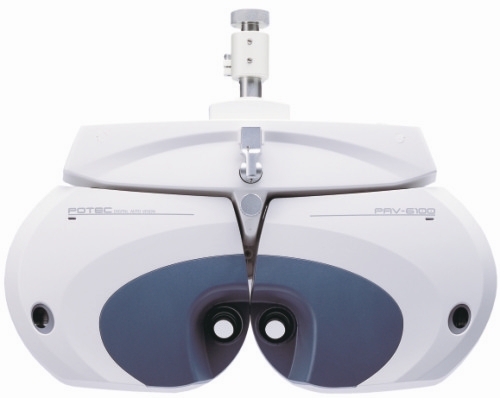

PAV-6100
supplies the most various examination
methods compared with other refractors.
· 18 visual acuity tests
· 26 monocular and binocular
(correction) tests
· 35 user-defined tests can be stored
and edited |
|
Powerful
program function
· Up to 10 user-defined programs can
be stored
· In a user-defined program, any of
single tests, auxiliary lenses, fogging,
chart masking, and other options
can be all stored
· Renaming the user-defined programs
is also possible for the user's
convenience
|
|
Simple
automated eyes examination system
· Convenient system installation thru
Junction box
· Single cable connection among the
instruments |
|
Sharp
design & intelligent near vision chart
· The near point card rotates freely
in all directions, 360 degree
horizontally and 180
degree back and forth
· Complete chart combination for near
vision test |
 |
|
Perfect
networking & data management
· Useful data-link among mirror
chart, projector, refractor & lensmeter.
(Supports the connection of chart
presentation devices by both serial and
IR interface)
· Automatic data transmission &
integrated management of customer's data |
|
Economic
& efficient system
· Built-in printer in the Operation
Panel
· It is not necessary additional
connection devices & installation
procedure for system extension
(Refractometer's data and
lensmeter's data can be shared in
multiple PAV systems) |
|
System Networking
SPECIFICATION
|
MEASUREMENT RANGE |
|
Spherical Lens |
-29.00 ~
+26.75D (Regular)
-19.00 ~ +16.75D (Cross Cylinder or
Prism test)
(0.12D/0.25D/0.5D/1.0D/2.0D/3.0D/4.0D
increments) |
|
Cylinder Lens |
0.00 ~ ±8.75D
(0.25D/0.5D/1D/2D/3D increments) |
|
Cylinder Axis |
0° ~ 180° (1°/5°/15°
increments) |
| PD |
48 ~ 80mm (0.5/1mm
increments) Near working distance : 35 ~
75cm |
| Rotary
Prism |
0 ~ 20Δ
(0.1Δ/0.2Δ/0.5Δ/1Δ/2Δ increments) |
| Cross
Cylinder |
±0.25D
±0.50D
±0.25D Dual Cross Cylinder (Split prism
lens) |
|
Retinoscope |
+1.5D, +2.0D
(Measurement Distance 67cm, 50cm) |
|
AUXILIARY LENS |
|
Occluder |
|
| Pin
Hole Lens |
ø1mm |
| Madox
Rode |
Right Eye(Red,
Horizontal), Left Eye(Red, Vertical) |
|
Red/Green Filter |
Right Eye(Red), Left
Eye(Green) |
|
Polarizing Filter |
Right Eye:(135°, 45°),
Left Eye:(45°, 135°) |
|
Split Prism |
Right Eye(6ΔBU)
Left Eye(10ΔBI:up to 5Δcomplement) |
| PD
Check Lens |
Thermal line printer
with Auto - Cutter function |
| Fixed
Cross Cylinder |
(±0.50D, Fixed with the
axis set at 90°) |
|
DIMENSION |
|
Refractor |
445(W)×255(D)×133(H)mm
6.9kg |
|
Controller |
220(W)×259(D)×188(H)mm
1.3kg(Including Built-in Printer) |
|
Junction Box |
350(W)×240(D)× 70(H)mm
2.2kg |
| Power
supply |
AC 100~120V/AC 220~240V
50/60Hz |
| Power
consumption |
110VA |
|
|
 |
PRK-5000
Auto Ref- Keratometer
|
 |
Reflection sight/Measurement of cornea
curvature
PRK-5000 provides wide reflection sight
from -25.00D to +22.00D. And cornea
curvature measured
from 5.0mm to 10.2mm. You can check your
reflection sight and cornea curvature at
once with easy
and friendly operation and confirm
results at once, too. |
 |
CLBS (Contact Lens Base Curve)
It can be measured by back side contact
lens holder which is modeling of hard
contact lens' base
curve (the rear curve), checked lens and
distinguished from right-left changed
lens. |
 |
Measurement of diameter
Used PRK-5000's picture suspension
function, it can be measured cornea, the
pupil diameter and
hard contact lens which have damaged
from users. It can make stopping the
eye's reflection,
so the procedures are convenient and
precise. |
Improved
Functionally
Optimized
Convenience
 |
Operation layer
We produce compact operation layers with
innovative design and advanced
technology. And it
contains a power sign light and a fixed
gripe of stage. |
 |
Easy handling joystick
PRK-5000 adopts convenient
omni directional joystick. It is executed
aim and measurements by one
hand. Novices gain precise results every
time. |
 |
Printer
When you push just "PRINT" button,
PRK-5000 provides perfect prints of
measurement results
immediately. It places PRk-5000's
front-right side for users' convenience.
|
 |
Transmission of data
Measured results can be transmitted to
external tools (PC, etc) using RS-232. |
PACP-6000
Auto Chart
Projector
Specification
| Chart |
31pcs |
| Chart
Selection Speed |
Average 0.3 sec |
| Mask |
1 open
5 horizontal lines
5 vertical lines
21 single letters |
| Filter |
Red/Green |
|
Protection Distance |
2.0m~7.0m (5m is
standard) |
|
Protection Magnification |
30x (at 5m) |
|
Protection Size |
252mm and 330 W x 225H
(at 5m) |
| Tilt
Angle |
Ball Joint (▽10◥) |
|
Lamp |
6V 20W
halogen, 2,000hours lifetime |
| Power
Source |
AC220~240V 50/60Hz,
AC110V |
| Power
Consumption |
50VA |
| Auto
OFF Function |
5~10 minutes after |
|
Dimensions (mm) |
Main Body:265(H) x
230(W) x 360(D)mm
Remote Controller:20(H) x 64(W) x
195(D)mm |
| Net
Weight |
Main Body : 6.0kg /
Remote Controller : 180g |
|
Interface |
8-pin connector for
simultaneous control of chart, mask, and
R/G filter by motorized refractor＊s
control unit |
|
Accessories |
1 each of dust cover,
polarized mental screen (400mm x 350mm),
1 polarized glasses, 2 spare fuses and 2
batteries, 1 spare lamp |
|
Optional Accessories |
Table stand, wall
bracket, floor stand, red/green glasses,
variable focus lens, screen angle fixing
set and reflecting mirror |
 High
quality charts
Clear and Fast !The PACP-6100 has high
resolution power of line, 50lines/mm, so
provides neat and clean graphics and a fast
chart changing speed marking it easy for
operators to use and comfortable for customers.
Wide
range of features
Various and Perfect !The PACP-6100 with 41
charts including Red/Green and Polarizing
filters are the new solution for Binocular
balance test, Stereo test, Aniseikonia test,
Fusion test.
The
best networking
Easy and convenient any refraction system
including the POTEC Refractor can incorporates
PACP-6100 to provide fast and efficient vision
tests.
An
elegant and compact design
The PACP-6100 can be accommodated in ant area it can be stood up
/ hung on a wall / placed on
a table stand.
Controllable by POTEC
refractor controller
POTEC's high networking technology provides
the remote control of PACP-6100 by POTEC
Refractor controller
A-TYPE
C-TYPE
D-TYPE
|
Chart |
41 chart 34
mask, Red/Green & Polarization Filters |
|
Projection Distance |
2.5 ~ 8m |
| Chart
Rotation Speed |
Average 0.15 sec |
|
Projection Magnificiation |
30x at 5m |
| Power
Saving |
Automatic Switch off (10
min) |
|
Program |
2 programs with a
maximum of 30 charts each |
|
Tilt Angle |
▽ 15﹉ |
|
Power Supply |
110V / 220V, 50 / 60Hz |
|
Power Consumption |
MAX 0.4A |
|
Lamp |
12V / 30W (Halogen) |
|
Dimension |
367(W) x 219(D) x
273(H)mm |
|
Weight |
6.6kg |
|
|
