SM-70N
Slitlamp
Microscope |
|
|
Converging
Binocular Tubes
The binocular
tubes feature a 6-degree
convergence for easy fusion,
ensuring stress-free
observation. Advanced
multi-coating is applied to all
lenses used in the microscope.
Because of the high optical
performance, bright images free
from flare and ghost can be
obtained, improving the quality
of medical examinations and
treatment. |
Eyepieces with Helicoid
Mechanism for Diopter Adjustment
The 16x high-eyepoint
eyepieces with an expanded field
of view enable observation over
a wider area. With the diopter
adjustment system that employs a
helicoid mechanism, the diopter
can be adjusted without rotating
the lenses or the eye caps. This
feature has been well received
as it prevents the adjusted
diopter from accidentally being
changed during use as the eye
caps will not rotate. |
|
|

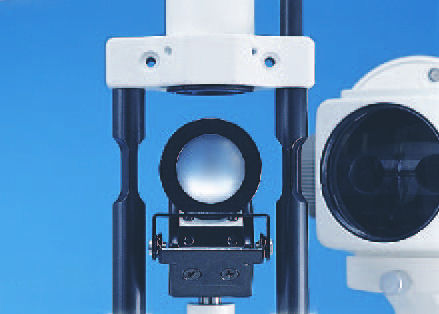

Specially-coated Mirror and
Diffuser
The
reflecting mirror has been given
a special coating, effectively
reducing harmful infrared and
ultraviolet rays to protect the
patient's eye against
phototoxicity while providing an
exceptionally natural view in
the visible light range. When
photographing the anterior
segment of the eye, the
diffuser, a standard feature,
can be used to extensively
illuminate the region being
observed. |
Integrated Control
The joystick for
XYZ movement, its top button for
the light booster function
(which also serves as a trigger
button for capturing images when
connected to an
imaging device), and the
rheostat adjacent to the
joystick for light intensity
adjustment can all be controlled
with one hand. This ensures a
smooth and swift examination.
Furthermore, the SM-70N has an
updated joystick mechanism,
providing outstanding control
from coarse to fine movement of
the slit lamp base. |
|
|
Slit lamp with Integrated Base
By integrating it
with the base, the sturdiness of
the chin rest assembly has
improved dramatically. Now that
the base is integrated, there is
no need to be selective with the
shape of fittings for the chin
rest assembly or its
installation method. The
slitlamp can now be set up very
easily on any type of instrument
table. |
New Form Headrest
The new form
headrest functions not only as a
headrest for the examinee but
also as a support for the
examiner holding an indirect
lens upon fundus examination,
reducing the fatigue in the arm
caused by long hours of
examination.
|
|
Right Eye / Left Eye Recognition
Sensor and Signal Output
Function The
right eye/left eye recognition
sensor is now built-in so that
the slitlamp works well
with an image filing system.
Right eye/left eye recognition
signal is output once the
slitlamp is aligned to the eye
to be tested.
* The
cable-end connector of the
connecting cable (optional)
varies according to the image
filing system used. Contact our
Sales Department for details. |
|
Patient's Hand Rests (Optional)
Patient's hand
rests have been updated in the
SM-70N. The angle of the hand
rests can be adjusted in five
steps by changing the positions
of the mounting screws. The
grips are designed in a way that
the patient can easily hold onto
them and steadily maintain the
"lean-forward" position. |
Navigation LED's
The LED's
illuminate to indicate the
approximate position to assist
focusing on the eye to be
tested. By aligning the marker
located on the base of the
slitlamp to the position of the
relevant LED, the microscope can
easily be focused on the right
or left eye. * The focal length
between the microscope and the
eye to be tested varies from
individual to individual. This
function only provides
approximate positioning. |
|
Slitlamp
Microscope.
MICROSCOPE |
|
CROSS-SLIDE BASE |
|
Type |
Galilean-type coverging
binocular microscope |
Longitudinal (coarse) movement |
90mm |
Magnification Changer |
Five-position rotating drum |
lateral (coarse) movement |
110mm |
Eyepieces |
16x (high eyepoint, wide field) |
Horizontal (fine) movement |
15mm |
Total magnifications |
6.3x, 10x, 16x, 25x, 40x |
Vertical movement |
15mm |
Real field of view |
35mm, 23mm, 14mm, 8.7mm, 5.6mm
diameters |
CHIN REST |
|
Interpupilary adjustment |
52mm – 82mm |
Vertical movement |
70mm |
Diopter adjustment tange |
±7D |
Fixation light |
LED (red) |
|
|
|
|
Slit width |
0 to 10mm,
continuously variable (at
10mm,slit becomes a circle) |
Input voltage |
100VAC to 230VAC
50/60Hz |
Slit length |
1 to 10mm,
continuously variable |
Maximum power
consumption |
40VA |
|
Aperture diaphragms |
10mm, 5mm, 3mm, 2mm, 1mm,
0.2mm
diameters |
DIMENSIONS &
WEIGHT |
diaphragms Filters |
Heat absorbing, UV,
red-free, and cobalt blue |
Base dimensions |
359mm(W) x364mm(D) |
Lamp |
12V 30W halogen bulb |
Weight |
13.3kg |
|
|
