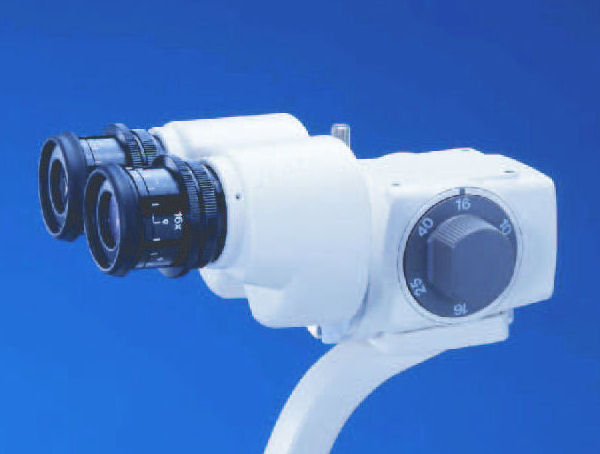

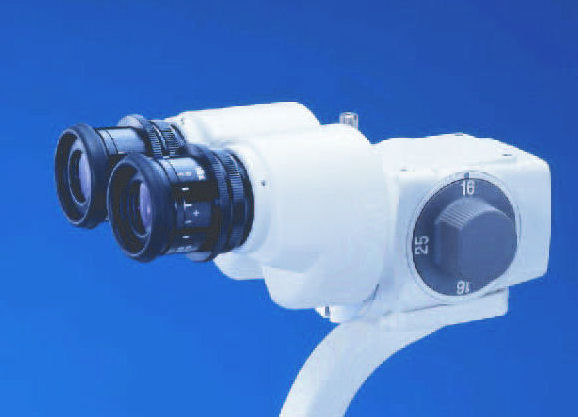

Converging Binocular Tubes

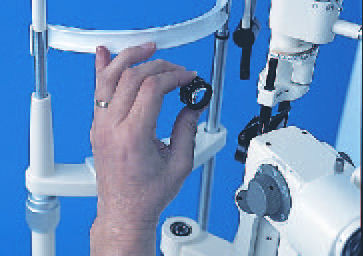

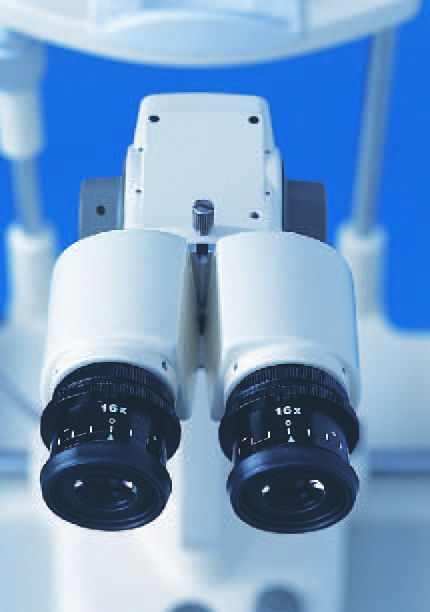

The 16x high-eyepoint eyepieces with an expanded field of view enable observation over a wider area. With the diopter adjustment system that employs a helicoid mechanism, the diopter can be adjusted without rotating the lenses or the eye caps. This feature has been well received as it prevents the adjusted diopter from accidentally being changed during use as the eye caps will not rotate.

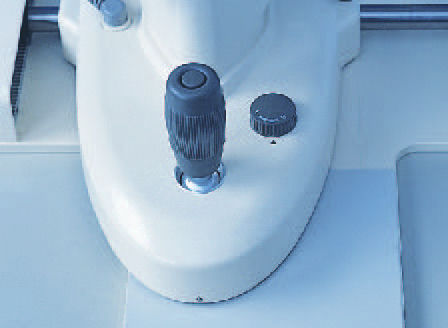

The joystick for XYZ movement, its top button for the light booster function (which also serves as a trigger button for capturing images when connected to an
imaging device), and the rheostat adjacent to the joystick for light intensity adjustment can all be controlled with one hand. This ensures a smooth and swift examination. Furthermore, the SM-70N has an updated joystick mechanism, providing outstanding control from coarse to fine movement of the slitlamp base.

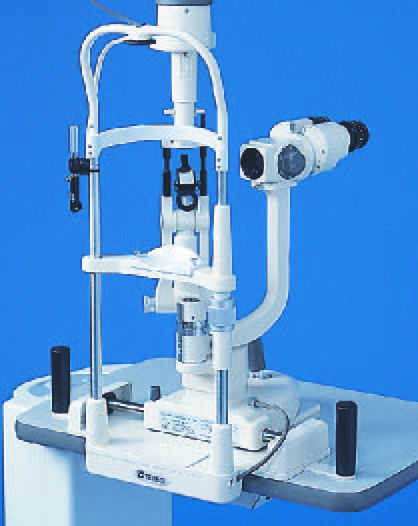

By integrating it with the base, the sturdiness of the chin rest assembly has improved dramatically. Now that the base is integrated, there is no need to be selective with the shape of fittings for the chin rest assembly or its installation method. The slitlamp can now be set up very easily on any type of instrument table.

The new form headrest functions not only as a headrest for the examinee but also as a support for the examiner holding an indirect lens upon fundus examination, reducing the fatigue in the arm caused by long hours of examination.

* The cable-end connector of the connecting cable (optional) varies according to the image filing system used. Contact our Sales Department for details.

Patient's hand rests have been updated in the SM-70N. The angle of the hand rests can be adjusted in five steps by changing the positions of the mounting screws. The grips are designed in a way that the patient can easily hold onto them and steadily maintain the "lean-forward" position.

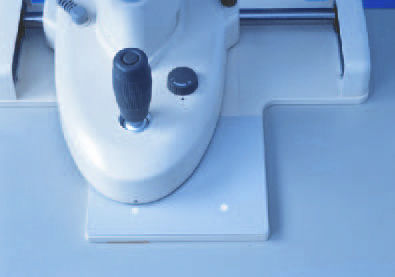

The LED's illuminate to indicate the approximate position to assist focusing on the eye to be tested. By aligning the marker located on the base of the slitlamp to the position of the relevant LED, the microscope can easily be focused on the right or left eye. * The focal length between the microscope and the eye to be tested varies from individual to individual. This function only provides approximate positioning.
